    Little Space Automatic Outdoor Escalator Anti Rusting One Way Traffic Inclination 35°

    Ask Lasest Price
    Brand Name : WELLIFT
    Model Number : W8
    Certification : Special Equipment Type-examination Certificate
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 1000 Unit per month
    Delivery Time : 40 work days
    • Product Details
    • Company Profile

    Little Space Automatic Outdoor Escalator Anti Rusting One Way Traffic Inclination 35°

    Inclination 35° Automatic Outdoor Escalator One-way Traffic with Little Space

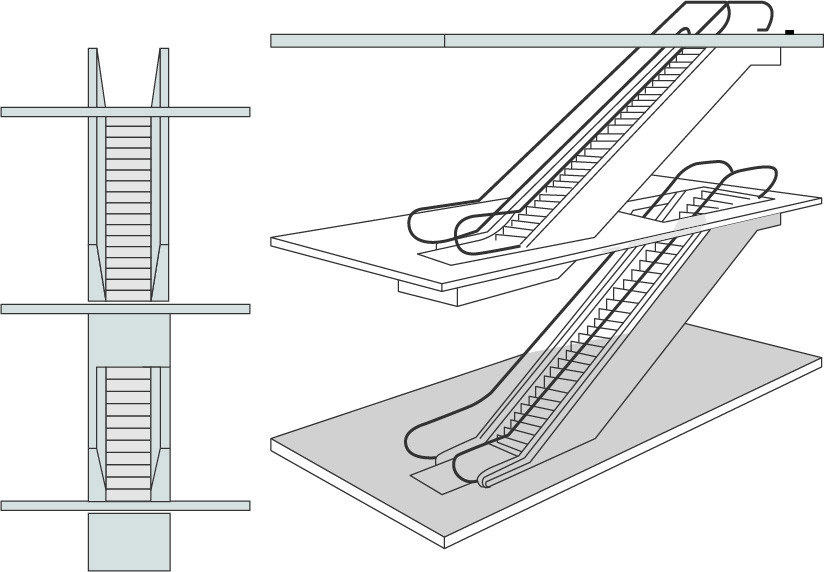

    When there is no very spacious space to install outdoor escalators, Interrupted arrangement for escalators is your best choice. Such arrangement escalator requires little space. This arrangement will allow the passengers to view the shops around the escalator. Advertisement, exhibit can be placed between up down escalator, It fulfills business promotion.


    Little Space Automatic Outdoor Escalator Anti Rusting One Way Traffic Inclination 35°


    Outdoor escalator has the same configuration and functions as indoor escalator. Considering the use environment of outdoor escalator, WELLIFT W8 serial outdoor escalators have added the following features:

    • Anti-rusting and anticorrosion treatment

    Truss applies superior profile steel with unique structure, high intensity, thorough anti-rusting and anticorrosion treatment, fine effect, long life.

    Conveyor chains proceed with special heat treatment (surface is nickel-plated)

    Upper and lower part of the escalator structure should be protected by anti-rust and marine paint.

    • Water-proof measures

    The whole design takes the escalator drainage system into consideration.Drive motor adopt water-proof type. Main and secondary step chain sprockets all use Germany water-resisting materials. Bearing is sealed and water-proof. So ensure steps work normally in outdoor environment.

    • Insulation Measures

    Adopts Germany sealed safety switches.

    Wires and switches are connected by special designed fastening cover.

    All wires adopt elevator cables and wiring in sealed insulating box.

    Set up special ground connecting device with control cabin.

    • Dust-proof functions

    Steps and front plates with skid-proof function

    • High insulating level

    Outdoor escalator electric device insulating level is up to IP44

    • Traction machine abandon belt brake, use center brake instead.
    • Set up oil-water separator equipment

    WELLIFT W8 serial escalator has unbeatable advantages on safety, operation appearance and energy saving in this trade. It is applicable for hotels, office buildings, shopping center, etc with good quality and competitive price.


    Standard Specification of W8 serial outdoor escalator

    Target market:Shopping mall, Commercial Building, Hospital, Subway, Airports
    Step width600mm, 800mm, 1000mm
    Speed(m/s)≤0.5
    Inclination30°, 35°
    Max. Vertical rise≤8000mm
    Operating environmentoutdoor

    Superior Performance of W8 serial escalator

    Safety
    “Safety the first" is the basic guideline of W8. The design, manufacture and installation all reach or exceed GB16899-2011 and EN115 "Safety rules for the construction and installation of escalators and passenger conveyors”.
    Reliability
    1W8 runs smoothly, comfortable and safe to take. It is the perfect combination of ideal design solution and up-to-date technical achievement
    2The truss are made of special bar sections and rectangle steel tube, with stress relieving treatment, so that to be solid, durable and no deformable
    3The drive device adopts the most advanced technology of German FRANDER Company which has the features of high efficiency uniform operation and low noise
    4The control system adopts Japanese new-generation PLC technology, which can perform function setting and trouble self-diagnose, the remote monitoring interface can be added if necessary
    5The steps which formed from High-strength whole piece die-cast aluminum or stainless steel, and high-quality handrail guarantee the handsome appearance, safety and durability of escalator.
    6Following ISO9001 Quality Control System, each W8 escalator is manufactured and tested carefully to be of good quality
    New Standard Configurations
    • Automatic oil lubricator
    • Automatic trouble display
    • Remote monitoring interface
    Optional Function
    • Automatic start / stop System
    • VF drive system
    • Oil / water separator(Apply to outdoor escalator)
    Decorative Selection
    • With elegant appearance, advanced technology and smart design, W8 is harmonious with various circumstances. You can select suitable handrail glass and tread according to building style
    • Standard color of handrail is black; other 4 colors (blue, green, and grey, red) are available with additional charge.

    Please feel free to contact us if you have any need for our products. Also you can visit our company website www.wellift.com to download product catalogues.
