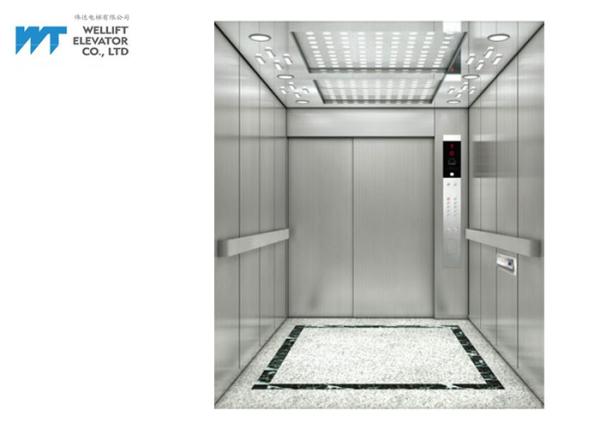

Hospital Bed Lift with High Quality 304 Hairline Stainless Steel
Finish Cabin
Our hospital bed lift fully considers its own safety bearing in
design. The hairline stainless steel cabin is one of the most
popular elevator cabin. This type cabin not only beautiful and
durable, but also easy to maintain. We adopt thickness 1.5mm high
quality 304 stainless steel sheets as standard, thickening
stainless steel plate makes bed lift run more smoothly and safety.
It is the best choice for commercial & hospital building elevator.
Adopting permanent magnet synchronous motor gearless drive system
and top-grade components, 1600kg high safety hospital elevator
meets highest requirements of modern hospitals and care
institutions. It will create an intimate, comfortable room to the
greatest extent for hospital staffs and patients to take.
Standard Specification of 1600kg hospital bed elevator with machine
room
| Model | V8 |
| Rated capacity(kg) | 1600 |
| Number of passenger | 21 |
| Rated speed (m/s) | 1.0, 1.5, 1.75, 2.0, 2.5 |
| Machine room Position | Above shaft |
Type of car door | Auto center opening door with VVVF drive |
| Auto Side opening door with VVVF drive |
| Car Dimension (W X D X H ) | 1400mm width x 2400mm depth x 2600 mm High |
Landing Doors Entrance (W X H) | 1000mm width x 2200 mm High Center opening door |
| 1200mm width x 2200 mm High Side opening door |
| Overhead(mm) | ≥4600, 4860,5000 |
| Pit Depth(mm) | ≥1400, 1600,1800 |
Shaft Net Size (Width X Depth) | 2450 mm Width x 2850 mm Depth Center opening door |
| 2350 mm Width x 2900 mm Depth Side opening door |
Control System
Wellift passenger elevator adopts the globally recommended VVVF
Integrated Control System.
WELLIFT integrated drive controller is the new generation of
state-of-the-art elevator-specific control and drive device. With
full consideration of the safety & reliability of elevator;
inherent characteristic of elevator operation and specific feature
of potential energy load for elevator, this series elevator
integrated drive controller adopt advanced technology of frequency
control of motor speed and intelligent elevator control as well as
the integration of control & drive of elevator to make the further
improvement of the product performance, easy-to-use property and
cost efficiency.
Elevator Traction Machines
Wellift passenger elevator adopts permanent magnet synchronous
motor gearless drive with conversion efficiency reaching 100%,
applies high permanent magnet materials, realizes miniaturization
and high efficiency of the system free of gear oil and maintenance
and electromagnetism interference, low noise.
Model No.: V8 PM Gearless traction machine
Traction ratio: 2:1
Elevator Door System
Applied with VVVF control technology, running curve of door
operator can be adjusted discretionarily, running safely and
comfortably, low noise and credibility quality, easy to be adjusted
and installed.
Opening Type: Center Opening and Side Opening
Elevator Safety Components
Speed governor, safety gear, oil buffer, guide shoe and rope brake
,all safety components parts are carefully selected from top-grade
professional factories, fully comply with GB7588-2003 standard (
equivalent to the EN81-1: 1998 standard), featuring professional
product design, high quality, passing national type testing
certification.
No matter on design, manufacture, spare parts, technique or other
sides, industrial standard is strictly followed, the same as other
leading brands, even exceeding them on some details. All main parts
are carefully selected from top-grade professional factories
guaranteed by ISO9001 Quality Control System; the performance of
complete machine is unquestionably perfect.
Please feel free to contact us if you have any need for our
products. Also you can visit our company website www.wellift.com to
download product catalogues.
